PHILIPS Xitanium Serisi LED Driver

Xitanium 38W 0.6/0.7A 54V 230V

Order Code: 929001419880
Output Power: 38W
Output Voltage: 27... 54Vdc
Output Current: 0.6...0.7A
Efficiency: ≥ 85

Xitanium 36W 0.08-0.4A 220V SR FlexTune 230V

Order Code: 9290 016 93706
Output Power: 10...36W
Output Current: 0.08...0.4A
Output Voltage: 50...220Vdc
Efficiency: 88

Xitanium 100W 0.15-0.5A 300V iXt 230V

Order Code: 929001506606
Output Power: 28...100W
Output Voltage: 100...300Vdc
Output Current: 0.15...0.5A
Efficiency: 94.1

Xitanium 100W 0.15-0.5A 300V iXt TD 230V

Order Code: 929001685606
Output Power: 28...100W
Output Voltage: 100...300V
Output Current: 0.15...0.5A
Efficiency: 95

XITANIUM 75W 0.12A-0.4A 220V 230V

Order Code: 9290 009 50706
Output Power: 21...75W
Output Current: 0.12...0.4A
Output Voltage: 100...220Vdc
Efficiency: 92

Xitanium 150W 0.2-0.7A 300V iXt TD 230V

Order Code: 929001685706
Output Power: 43...150W
Output Voltage: 100...300Vdc
Output Current: 0.2...0.7A
Efficiency: 95

XITANIUM 150W 0.2-0.7A 300V iXt 230V

Order Code: 929001506706
Output Power: 43...150W
Output Voltage: 100...300V
Output Current: 0.2...0.7A
Efficiency: 95.1

Xitanium 300W 0.5-1.4A 300V iXt TD 230V

Order Code: 929001608406
Output Power: 85...300W
Output Voltage: 100...300V
Output Current: 0.5...1.4A
Efficiency: 95.8

XITANIUM 150W 0.2 0.7A 300V iXt TD 230V

Order Code: 929001516506
Output Power: 43....150W
Output Voltage: 100... 300Vdc
Output Current: 0.2...0.7A
Efficiency: ≥95

Xitanium 35W 0.08-0.35A 220V TD21 230V

Order Code: 929001681706
Output Power: 10...35W
Output Voltage: 50...220Vdc
Output Current: 0.08...0.35A
Efficiency: 90

Xitanium 60W 0.08-0.35A 300V TD21CL 230V

Order Code: 929002865506
Output Power: 17...60W
Output Current: 0.08...0.35A
Output Voltage: 100...300Vdc
Efficiency: 93.8

Xitanium 75W 0.12-0.4A 215V TD 230V

Order Code: 929000852103
Output Power: 75W
Output Current: 0.12...0.4A
Output Voltage: 100...215Vdc
Efficiency: 93

Xitanium 90W 0.15-0.5A 300V TD21 S 230V

Order Code: 929001694906
Output Power: 25...90W
Output Current: 0.15...0.5A
Output Voltage: 100...300Vdc
Efficiency: 94

Xitanium 90W 0.25-0.7A 220V TD21 230V

Order Code: 929001694706
Output Power: 25...90W
Output Current: 0.25...0.7A
Output Voltage: 50...220Vdc
Efficiency: 94

Xitanium 100W 0.25-0.7A 220V TD16 230V

Order Code: 929001547306
Output Power: 28...100W
Output Current: 0.25...0.7A
Output Voltage: 50...220Vdc
Efficiency: 94

Xitanium 100W 0.15-0.5A 300V SR 230V iXt

Order Code: 929001695706
Output Power: 28...100W
Output Voltage: 100...300Vdc
Output Current: 0.15...0.5A
Efficiency: 94

Xitanium 150W 0.2-0.7A 300V SR 230V iXt

Order Code: 929001695806
Output Power: 43...150W
Output Voltage: 100...300Vdc
Output Current: 0.2...0.7A
Efficiency: 95

SURGE PROTECTOR CLASS-I & CLASS-II

Order Code: 929001607006
Surge protector Class-1
High surge protection of up to 10kV / 10kA
Lifetime: 100.000H
Push-in terminal

SURGE PROTECTOR CLASS-I SERIAL

Order Code: 929002102780
Surge protector Class-1 serial
High surge protection of up to 10kV / 10kA
Lifetime: 100.000H
Push-in terminal

XI LP 40W 0.3-1.05A S1 TWE I 175

Order Code: 929002103480
Output Power: 2...40W
Output Current: 0.07...1.05A
Output Voltage: 21...57Vdc
Efficiency: 88

Xi LP 65W 0.5-1.5A S1 230V I150

Order Code: 929001474180
Output Power: 2.5...65W
Output Current: 0.105...1.5A
Output Voltage: 21...62Vdc
Efficiency:

XI LP 100W 0.5-1.5A S1 230V I155

Order Code: 9290 028 23180
Output Power: 3.3...100W
Output Current: 0.5...1.05A
Output Voltage: 33...95Vdc
Efficiency: 90

XI LP 100W 0.3-1.05A S1 230V I155

Order Code: 929002822880
Output Power: 3.3...100W
Output Current: 0.3...1.05A
Output Voltage: 46...143Vdc
Efficiency: 90

XI LP 150W 0.3-1.05A S1 230V I175

Order Code: 9290 014 07080
Output Power: 75...150W
Output Current: 0.3...1.05A
Output Voltage: 72...214Vdc
Efficiency: 91

XI LP 200W 0.3-1.05A S1 230V I 195

Order Code: 929002823080
Output Power: 10...200W
Output Current: 0.3...1.05A
Output Voltage: 142...286Vdc
Efficiency: 92.5

Xi LP 200W 0.5-1.5A S1 230V I195

Order Code: 929002823380
Output Power: 10...200W
Output Current: 0.5...1.5A
Output Voltage: 100...200Vdc
Efficiency: 92.5

XI LP 220W 0.5-1.5A S1 230V I 230

Order Code: 929001424680
Output Power: 7.3...220W
Output Current: 0.1...1.5A
Output Voltage: 73...210Vdc
Efficiency: 93

XI FP 22W 0.2-0.7A SNLDAE 230V C123 sXt

Order Code: 929002165006
Output Power: 0.9...22W
Output Voltage: 16...48Vdc
Output Current: 0.05...0.7Adc
Efficiency: 87

Xi FP 22W 0.2-0.7A SNLDAE 230V S175 sXt

Order Code: 929002172306
Output Power: 0.9...22W
Output Voltage: 16...48Vdc
Output Current: 0.05...0.7A
Efficiency: 86

Xi FP 40W 0.2-0.7A SNLDAE 230V C123 sXt

Order Code: 929002165206
Output Power: 1.3...40W
Output Voltage: 25...77Vdc
Output Current: 0.05...0.7A
Efficiency: 90

Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt

Order Code: 929002128306
Output Power: 1.4...40W
Output Voltage: 25...77Vdc
Output Current: 0.05...0.7A
Efficiency: 90

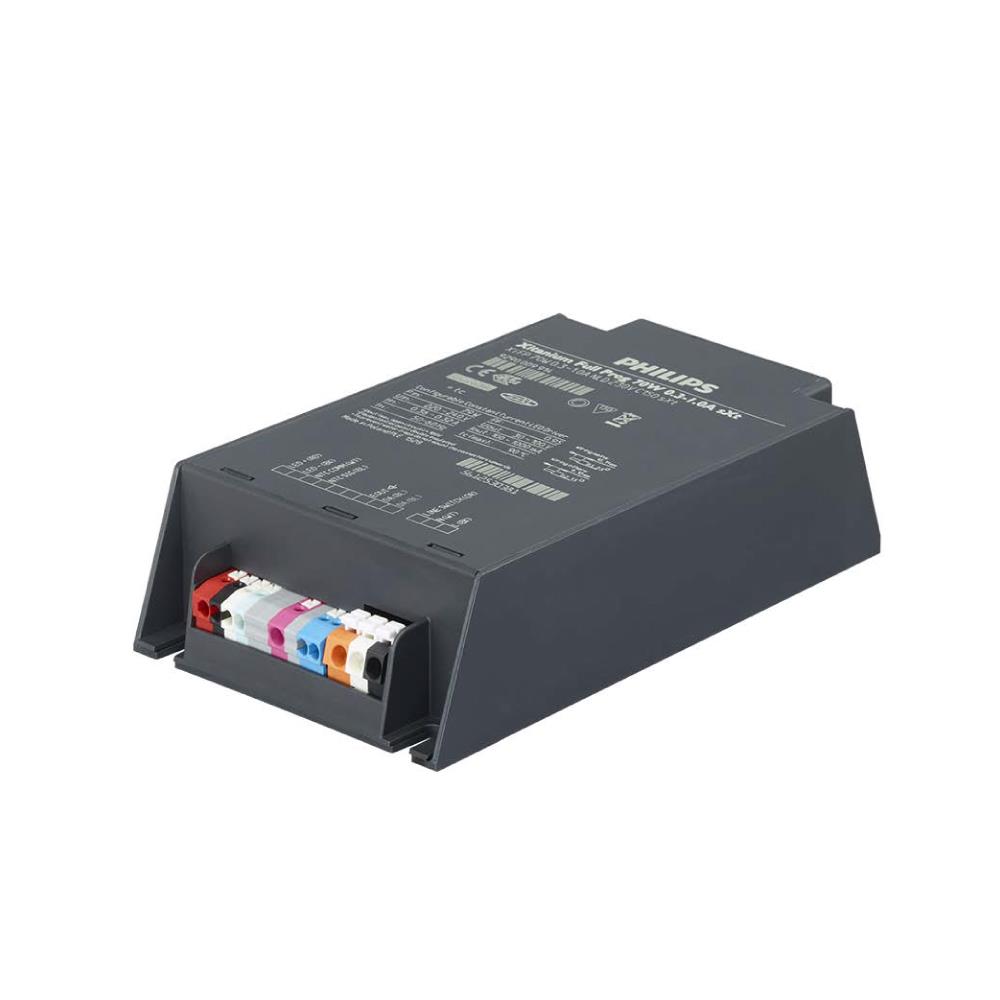

Xi FP 70W 0.3-1.0A NLD C150 230V sXt

Order Code: 929000991406
Output Power: 4...70W
Output Voltage: 30...100Vdc
Output Current: 0.07...1A
Efficiency: ≥ 88

Xi FP 75W 0.2-0.7A SNLDAE 230V C133 sXt

Order Code: 929002872906
Output Power: 2.5...75W
Output Voltage: 35...108Vdc
Output Current: 0.05...0.7A
Efficiency: 91.5

Xi FP 75W 0.2-0.7A SNLDAE 230V S240 sXt

Order Code: 929002128406
Output Power: 2.5...75W
Output Voltage: 50...150Vdc
Output Current: 0.05...0.7A
Efficiency: 91.5

Xi FP 100W 0.2-0.7A SNLDAE 230V C165 sXt

Order Code: 929000963206
Output Power: 4...75W
Output Current: 0.07...0.7A
Output Voltage: 50...150Vdc
Efficiency: 92

Xi FP 100W 0.2-0.7A SNLDAE 230V C165 sXt

Order Code: 929001650006
Output Power: 3...100W
Output Voltage: 50...150Vdc
Output Current: 0.2...0.7A
Efficiency: 92.5

XI FP 110W 0.2-0.7A SNLDAE 230V C133 sXt

Order Code: 929002873106
Output Power: 4...110W
Output Voltage: 70...220Vdc
Output Current: 0.05...0.7A
Efficiency: 92.5

XI FP 150W 0.2-0.7A SNLDAE 230V S240 sXt

Order Code: 929002128606
Output Power: 4.5...150W
Output Voltage: 90...283Vdc
Output Current: 0.05...0.7A
Efficiency: 92.5

Xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt

Order Code: 9929002874906
Output Power: 7...165W
Output Voltage: 100...300Vdc
Output Current: 0.05...0.7A
Efficiency: 93

Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt

Order Code: 929002852206
Output Power: 8.8...220W
Output Voltage: 125...350Vdc
Output Current: 0.07...1.05A
Efficiency: 93.5

Xi FP 330W 2:0.2-0.75A SNDAE 230V C240 sXt

Order Code: 929002114806
Output Power: 10...330W
Output Voltage: 100...300Vdc
Output Current: 0.1...1.50A
Efficiency: 93.4

Xi LP 22W 0.3-1.0A S1 230V S175 sXt

Order Code: 929001613606
Output Power: 0.5...22W
Output Current: 0.05...0.7A
Output Voltage: 16...48Vdc
Efficiency: 86

Xi LP 22W 0.2-0.7A S1 230V C123 sX

Order Code: 9290 021 02906
Output Power:0.8...22 W
Output Current: 0.2...0.7 A
Output Voltage: 16...48Vdc
Efficiency: 87.4

Xi LP 40W 0.2-0.7A S1 230V C123 sXt

Order Code: 929002103106
Output Power: 1.3...40W
Output Current: 0.2...0.7A
Output Voltage: 25...77Vdc
Efficiency: 90

Xi LP 22W 0.2-0.7A S1 230V S175 sXt

Order Code: 929000930706
Output Power: 1.3...40W
Output Current: 0.05...0.7A
Output Voltage: 23...77Vdc
Efficiency: 89

Xi LP 75W 0.2-0.7A S1 230V C133 sXt

Order Code: 929001654706
Output Power: 3.5...75W
Output Voltage: 50...150Vdc
Output Current: 0.2...0.7A
Efficiency: 91

Xi LP 110W 0.2-0.7A S1 230V C133 sXt

Order Code: 929001655006
Output Power:4.9...110W
Output Current: 0.2...0.7A
Output Voltage: 70...220Vdc
Efficiency: 91.5

Xi LP 165W 0.2-0.7A S1 230V C170 sXt

Order Code: 929001535406
Output Power: 7...165W
Output Voltage:100...300Vdc
Output Current: 0.07...0.7A
Efficiency: 93

Xi LP 150W 0.2-0.7A S1 230V S240 sXt

Order Code: 929000962806
Output Power: 7...150W
Output Voltage: 90...283Vdc
Output Current: 0.07...0.7A
Efficiency: 93

Xi BP 12W 0.1-0.5A S 230V C100

Order Code: 929001657106
Output Power: 2...12W
Output Voltage: 13...39Vdc
Output Current: 0.1...0.5A
Efficiency: 81

Xi BP 22W 0.2-0.7A S 230V C123 sXt

Order Code: 929001499306
Output Power: 6...22W
Output Current: 0.2...0.7A
Output Voltage: 16...48Vdc
Efficiency: 87

Xi BP 40W 0.2-0.7A S 230V C123 sXt

Order Code: 929001499406
Output Power: 5...40W
Output Current: 0.2...0.7A
Output Voltage: 25...77Vdc
Efficiency: 90

Xi BP 75W 0.2-0.7A S 230V C133 sXt

Order Code: 929002817006
Output Power: 24.8...75W
Output Current: 0.2...0.7A
Output Voltage: 50...150Vdc
Efficiency: 91.5

Xi BP 110W 0.2-0.7A S 230V C133 sXt

Order Code: 929002817206
Output Power: 36.3...110W
Output Current: 0.2...0.7A
Output Voltage: 70...220Vdc
Efficiency: 92
