NTCWS024B-V3
NTCWS024B-V3
  • Products: Optisolis | Rs020 | Rs030 | Rs075
  • Wattage: 4,71 W
  • Forward Voltage: 34,9V
  • Maximum Forward Current: 300mA
  • Luminous Flux: 515lm | 450lm | 520 | 655lm
NFCWS024B-V3
NFCWS024B-V3
  • Wattage: 4,29 W
  • Forward Voltage: 35,8V
  • Maximum Forward Current: 120mA
  • Luminous Flux: 455 lm
  • Condition: 5000K Ra≧94, R9≧70 , IF=120mA Tj=25℃a
NFCWL036B-V3
NFCWL036B-V3
  • Products: Optisolis White | Oprisolis, Warm White | Rs020 | Rs030 | Rs075
  • Wattage: 6,44 | 8,99 W
  • Forward Voltage: 35,8V | 34,9V
  • Maximum Forward Current: 270mA | 600mA
  • Luminous Flux: 710lm | 1030lm | 900lm | 1030 | 1300lm
NFCWL060B-V3
NFCWL060B-V3
  • Products: Optisolis White | Optisolis, Warm White | Rs020 | Rs030 | Rs075
  • Wattage: 10,74W | 16W
  • Forward Voltage: 35,8V | 34,8V
  • Maximum Forward Current: 450mA | 1000mA
  • Luminous Flux: 1200lm | 1830lm | 1600lm | 1840lm | 2320lm
NFCWJ108B-V3
NFCWJ108B-V3
  • Products: Optisolis White | Optisolis, Warm White | Rs020 | Rs030 | Rs075
  • Wattage: 19,33W | 30,01W
  • Forward Voltage: 35,8V | 34,9V
  • Maximum Forward Current: 810mA | 1800mA
  • Luminous Flux: 2150lm | 3380lm | 2960lm | 3410lm | 4290lm
NFDWJ130B-V3
NFDWJ130B-V3
  • Products: Optisolis White | Optisolis, Warm White | Rs020 | Rs030 | Rs075
  • Wattage: 22,44W | 44,27W
  • Forward Voltage: 37,4V | 38,5V
  • Maximum Forward Current: 900mA | 2000mA
  • Luminous Flux: 2560lm | 4810lm | 4200lm | 4850lm | 6900lm

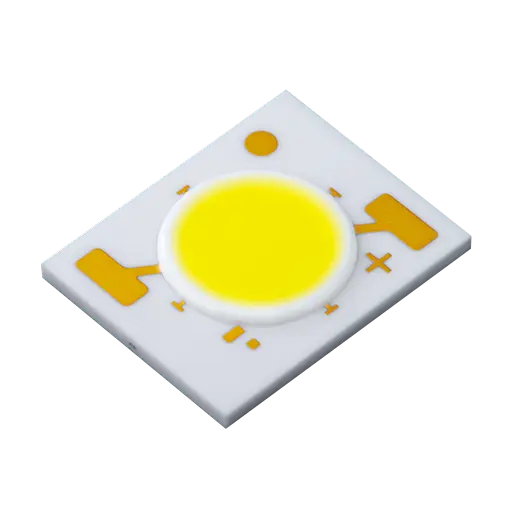

NFCWS024B-V4H6
NFCWS024B-V4H6
  • Wattage: 4,59 W
  • Forward Voltage: 34 V
  • Maximum Forward Current: 240mA
  • Luminous Flux: 830 lm
  • Condition: 5000K Ra≧94, R9≧50 , IF=135mA Tj=25℃a
NTCWS024B-V4
NTCWS024B-V4
  • Wattage: 4,71 W
  • Forward Voltage: 34,9 V
  • Maximum Forward Current: 300mA
  • Luminous Flux: 815 lm
  • Condition: 5000K Ra≧94, R9≧0 , IF=135mA Tj=25℃a

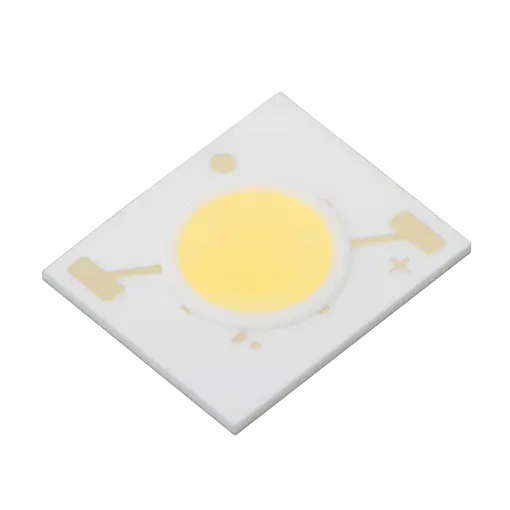

NFCWL036B-V4H6
NFCWL036B-V4H6
  • Product: NFCWL036B-V4H6 | NFCWL036B-V4
  • Wattage: 8,99W
  • Forward Voltage: 34,6V
  • Maximum Forward Current: 360mA | 600mA
  • Luminous Flux: 1,620lm | 1,610lm

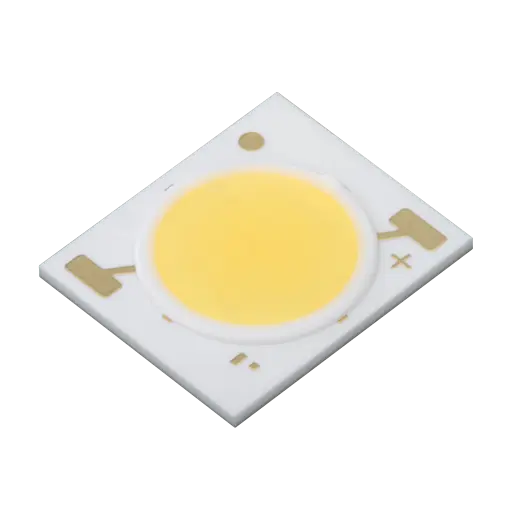

NFCWL060B-V4H6
NFCWL060B-V4H6
  • Product: NFCWL060B-V4H6 | NFCWL060B-V4
  • Wattage: 16W
  • Forward Voltage: 34,8V
  • Maximum Forward Current: 600mA | 1000mA
  • Luminous Flux: 2870lm | 2,840lm
NFCWJ108B-V4
NFCWJ108B-V4
  • Wattage: 30 W
  • Forward Voltage: 34,9 V
  • Maximum Forward Current: 1800 mA
  • Luminous Flux: 5250 lm
  • Condition: 5000K Ra≧80, R9≧0 , IF=860mA Tj=25℃a
NFDWJ130B-V4
NFDWJ130B-V4
  • Wattage: 44,27 W
  • Forward Voltage: 38,5 V
  • Maximum Forward Current: 2000 mA
  • Luminous Flux: 7460 lm
  • Condition: 5000K Ra≧80, R9≧0 , IF=1150mA Tj=25℃a
NFEWH306B-V2
NFEWH306B-V2
  • Products: NFEWH306B-V2 | Rs020 | Rs030 | Rs075
  • Wattage: 72,66W
  • Forward Voltage: 51,9V
  • Maximum Forward Current: 810mA | 1800mA
  • Luminous Flux: 1230lm | 6960lm | 8030lm | 10.090lm
