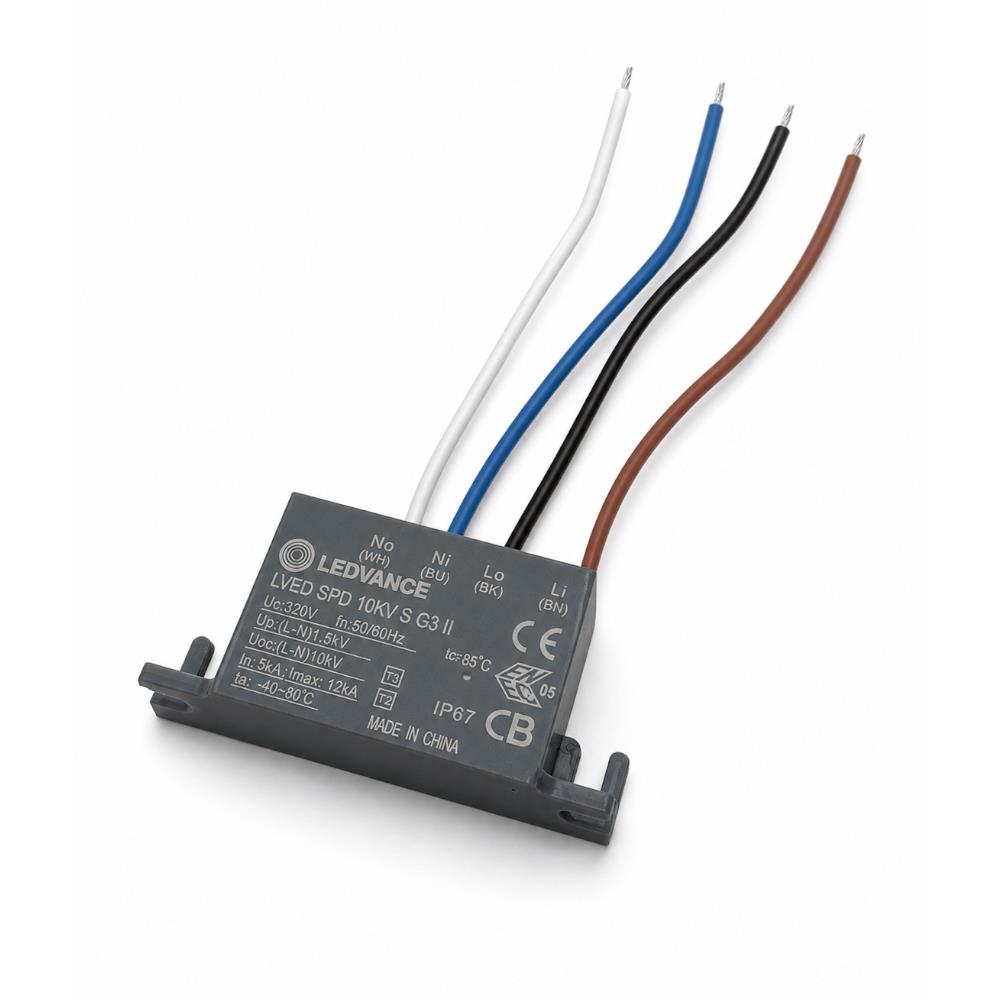

LVED SPD 10KV S IP67 Class II G3
SURGE PROTECTION DEVICE (SPD)
  • Maximum continuous operating voltage Uc: 320 VAC, 50/60 Hz
  • Nominal discharge current In: 5 kA
  • Maximum discharge current Imax: 12 kA
  • Protection class: Suitable for Class I luminaires, IEC 60598
  • Open-circuit voltage Uoc: 10 kV
  • Voltage protection level Up: L-N ≤ 1.5 kV, L-GND and N-GND ≤ 2 kV
  • IP protection rating: IP67
  • Operating temperature: -40°C to +80°C
  • LED status indicator and 100,000 hours nominal lifetime
Get Offer
Documents
  • LVED SPD 10KV S IP67 Class II G3 Datasheet DOWNLOAD
