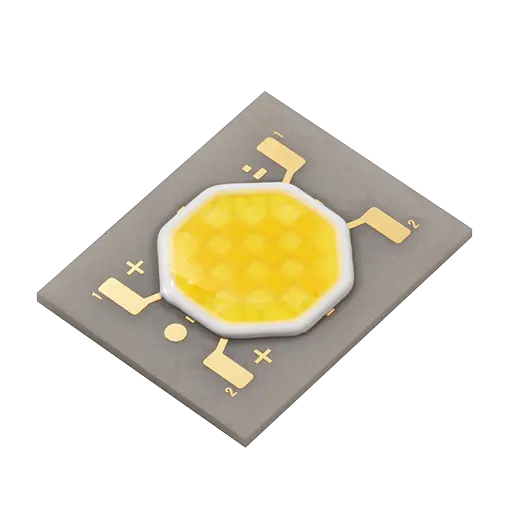

NVCWJ024Z-V1MT
TUNABLE WHITE
  • Wattage: 53W
  • Forward Voltage: 35,4V
  • Maximum Forward Current: 1500mA
  • Luminous Flux: 2730Lm
  • Luminous Efficacy: 128,53Lm/W
  • Condition: 5000K, If: 600mA, Tj:25°C
  • Wattage: 53W
  • Forward Voltage: 35,4V
  • Maximum Forward Current: 1500mA
  • Luminous Flux: 2080Lm
  • Luminous Efficacy: 98Lm/W
  • Condition: 2700K, If: 600mA, Tj:25°C
Documents
  • NVCWJ024Z-V1MT DOWNLOAD
    Part No. NVCWJ024Z-V1MT(Rce00ce)
    Size LxWxH (mm) 24×19×2
    Color temperature Typ.(K) 5000-2700
    Chromaticity Coordinate   Warm White
    5000 2700
    Typ.(x) 0.3447 0.4540
    Typ.(y) 0.3553 0.4000
    Luminous Flux Typ. (lm) 2,730 2,080
    Ra Min. 90
    R9 Min. 50
    VF Typ. (V) 35.4
    Max.(V) 38.4
    Directivity(2θ ½) (degree) 120
    IF (mA) 600
    Thermal resistance(RθJC) (℃/W) 0.53
    Absolute maximum ratings IF (mA) 1500
    IFP (mA) 2100
    IR (mA) 85
    PD (W) 57.6
    TJ (℃) 150
    Topr (℃) -40~105
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 42 per tray pack
    Soldering/Mounting Methods   Holder
