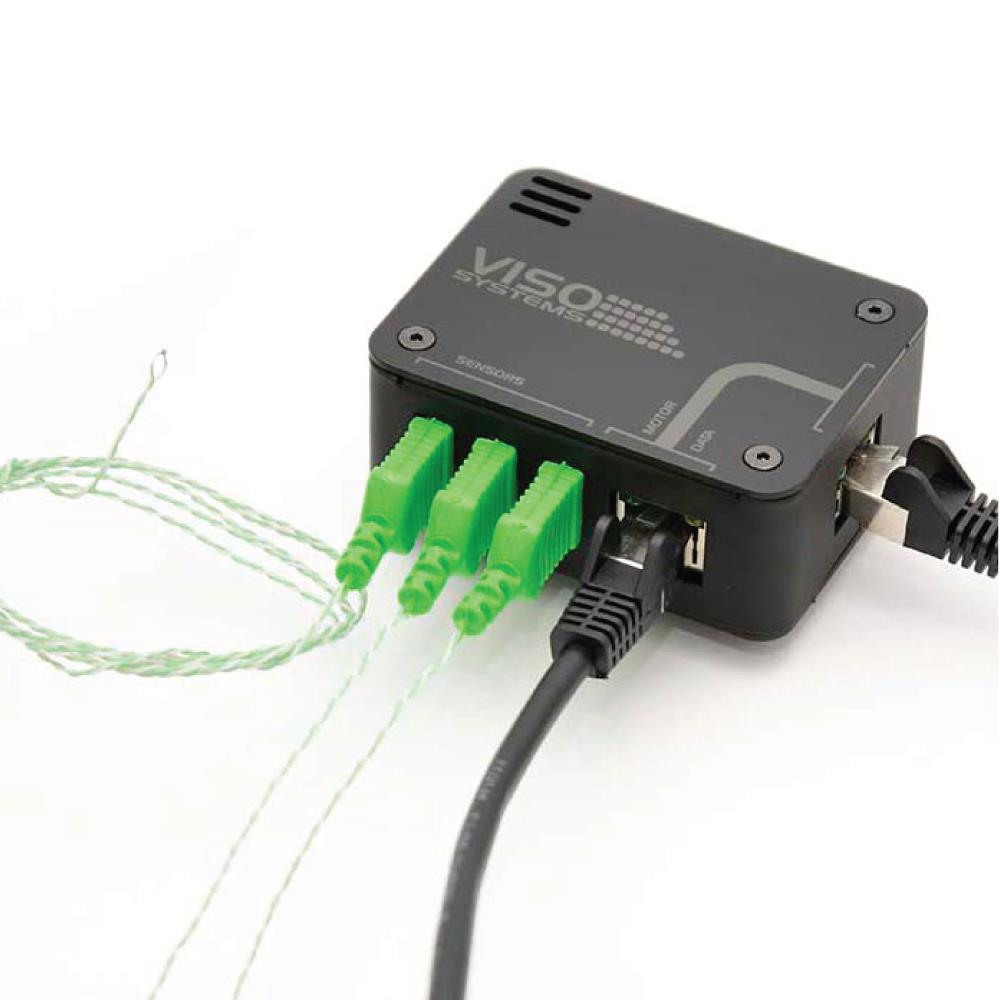

LabTemp
ÖLÇÜM
  • Designed for Viso LabSpion and BaseSpion
  • Connect up to three standard temperature probes for each LabTemp
  • Attached to goniometer tower with strong magnets
  • Connects directly to integrated main board with Ethernet cable
  • No external power supply or extra cables. No extra software.
  • Just one file: Data collected directly into the light measurement file
  • Makes it possible to make measurements comply with the CIE S 025 and LM79 standard temperature requirements
Teklif Al
Dökümanlar
  • LabTemp Datasheet İNDİR
  • Brochure interactive İNDİR
  • LabTemp User Manual İNDİR
  • İNDİR
    Sensors 1 pcs internal sensor  -40 to 128 °C
    3 pcs external probes -210 to 1800 °C
    Accuracy Accuracy of internal sensor ±0.25 °C, Accuracy of external probes ±0.15%
    Precision of sensors 0.01 °C
    Update Frequency 5Sa/s
    Physical data Powder coated steel housing
    76.3mm * 58mm * 32mm
    Weight: Device 200 g + sensors and 0.5 m Ethernet cable
    Power and data Via Ethernet to main board
