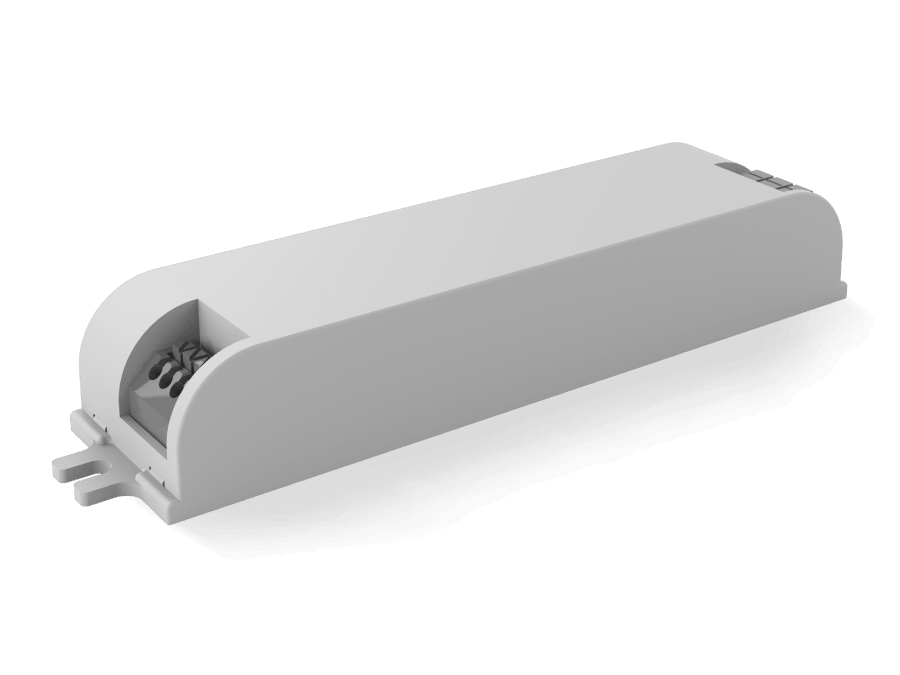

Emergency Lighting Kit
A 3 W kit that converts an existing LED luminaire to emergency lighting. Suits different LED modules with 36, 90 or 200 V output.
- Output power
- 3 W
- Output voltage
- 3–200 V DC
- Output type
- Constant current
- Emergency mode
- 3 hours
- Battery
- Li-ion or LiFePO4
All technical specifications
- Input voltage
- 220–240 V AC
- Frequency
- 50 / 60 Hz
- Power consumption
- ≈ 3 W
- Compliance
- EN 61347-2-7
- Operating mode
- Works on the mains
- Battery options
- Li-ion 3.7 V 900 mAh
LiFePO4 3.2 V 800 mAh
- Module dimensions
- 35 × 130 mm
- PCB
- FR4
- Operating temperature
- −10 °C / +50 °C
- Protection
- Short circuit, overvoltage, battery over-discharge
| Battery | Output | Current | Time |
|---|
| Li-ion | 36 V | 50 mA | 3 hours |
| Li-ion | 90 V | 15 mA | 3 hours |
| Li-ion | 200 V | 5 mA | 3 hours |
| LiFePO4 | 36 V | 50 mA | 3 hours |
| LiFePO4 | 90 V | 12 mA | 3 hours |
| LiFePO4 | 200 V | 5 mA | 3 hours |
