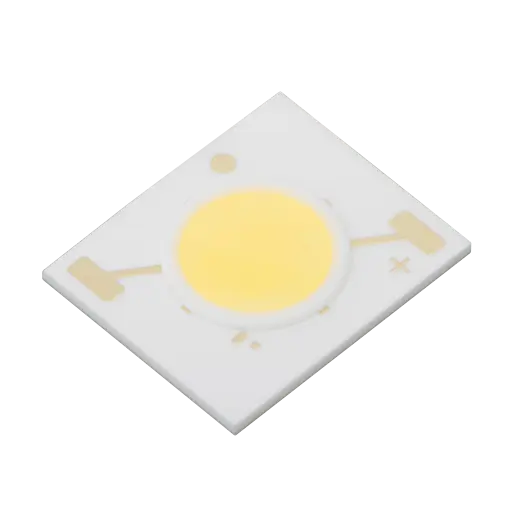

NFCWL036B-V4H6
HIGH EFFICIENCY H6 Serisi
  • Product: NFCWL036B-V4H6 | NFCWL036B-V4
  • Wattage: 8,99W
  • Forward Voltage: 34,6V
  • Maximum Forward Current: 360mA | 600mA
  • Luminous Flux: 1,620lm | 1,610lm
  • Condition: 5000K Ra≧90, R9≧50 | 5000K Ra≧94, R9≧50, IF=260mA Tj=25℃a
Teklif Al
Dökümanlar
  • NFCWL036B-V4H6 | NFCWL036B-V4 İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NFCWL036B-V4H6
    (H6 Series)

    		 19x16x2 White 260 34.6 90 50 1,620     120
    Warm White 260 34.6 90 50 1,570     120

    NFCWL036B-V4

    		 19x16x2 White 260 34.6 70   1,700     120
    White 260 34.6 80 >0 1,610     120
    White 260 34.6 90 50 1,430     120
    White 260 34.6 95 80 1,210     120
    Warm White 260 34.6 70   1,640     120
    Warm White 260 34.6 80 >0 1,520     120
    Warm White 260 34.6 90 50 1,340     120
    Warm White 260 34.6 95 80 1,110     120
