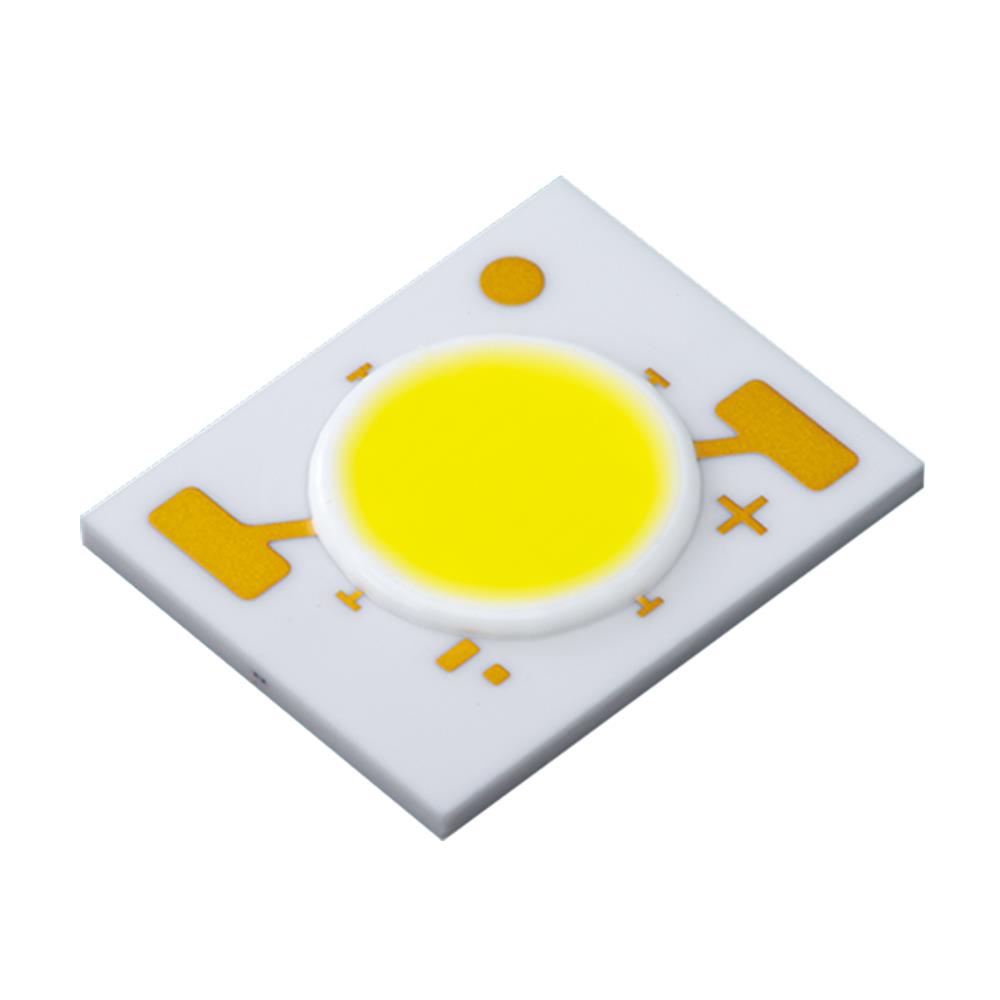

NFCWS024B-V4H6
HIGH EFFICIENCY H6 Serisi
  • Wattage: 4,59 W
  • Forward Voltage: 34 V
  • Maximum Forward Current: 240mA
  • Luminous Flux: 830 lm
  • Condition: 5000K Ra≧94, R9≧50 , IF=135mA Tj=25℃a
Dökümanlar
  • NFCWS024B-V4H6 İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NFCWS024B-V4H6
    (H6 Series)

    15x12x2 White 135 34.0 90 50 830     120
    Warm White 135 34.0 90 50 800     120
  • NFCWS024B-V4H6 (H6 Series) İNDİR
