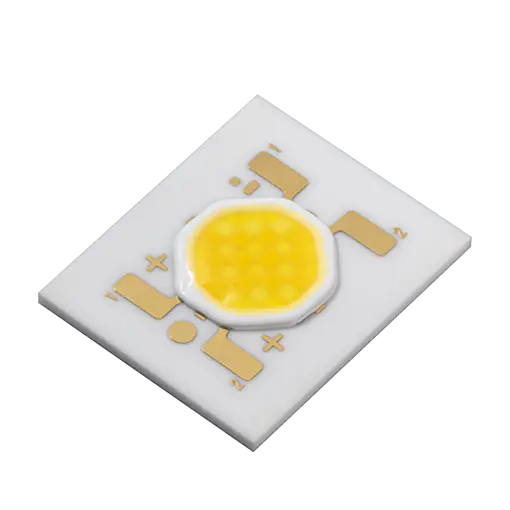

NJCWL024Z-V1MT
Tunable White COB
  • Wattage: 8,95 W
  • Forward Voltage: 35,8 V
  • Maximum Forward Current: 450mA
  • Luminous Flux: 1120 lm
  • Condition: 5000K Ra≧94, R9≧50 , IF=250mA Tj=25°Ca
Teklif Al
Dökümanlar
  • NJCWL024Z-V1MT İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NJCWJ024Z-V1MT
    (Tunable White)

    		 19x16×2 White 250 35.8 90 50 1,120     120
    Warm White 250 35.8 90 50 850     120
  • NJCWL024Z-V1MT Datasheet İNDİR
