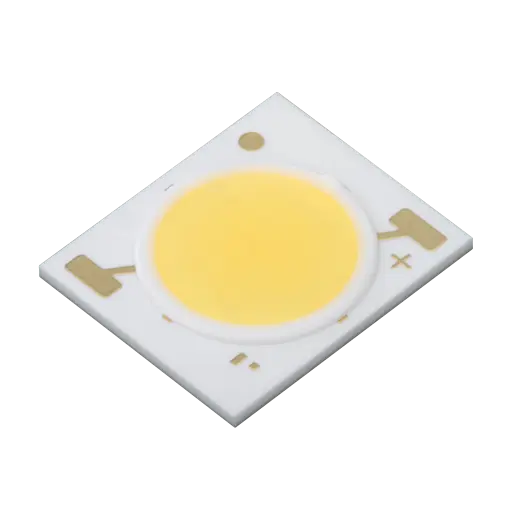

NFCWL060B-V4H6
HIGH EFFICIENCY H6 Serisi
  • Product: NFCWL060B-V4H6 | NFCWL060B-V4
  • Wattage: 16W
  • Forward Voltage: 34,8V
  • Maximum Forward Current: 600mA | 1000mA
  • Luminous Flux: 2870lm | 2,840lm
  • Condition: 5000K Ra≧90, R9≧50 | 5000K Ra≧80, R9>0, IF=460mA Tj=25℃a
Dökümanlar
  • NFCWL060B-V4H6 İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NFCWL060B-V4H6
    (H6 Series)

    19x16x2 White 460 34.8 90 50 2,870     120
    Warm White 460 34.8 90 50 2,780     120

    NFCWL060B-V4

    19x16x2 White 460 34.8 70   3,020     120
    White 460 34.8 80 >0 2,840     120
    White 460 34.8 90 50 2,520     120
    White 460 34.8 95 80 2,160     120
    Warm White 460 34.8 70   2,920     120
    Warm White 460 34.8 80 >0 2,690     120
    Warm White 460 34.8 90 50 2,370     120
    Warm White 460 34.8 95 80 1,980     120
  • NFCWL060B-V4H6 (H6 Series) İNDİR
    NFCWL060B-V4 İNDİR
