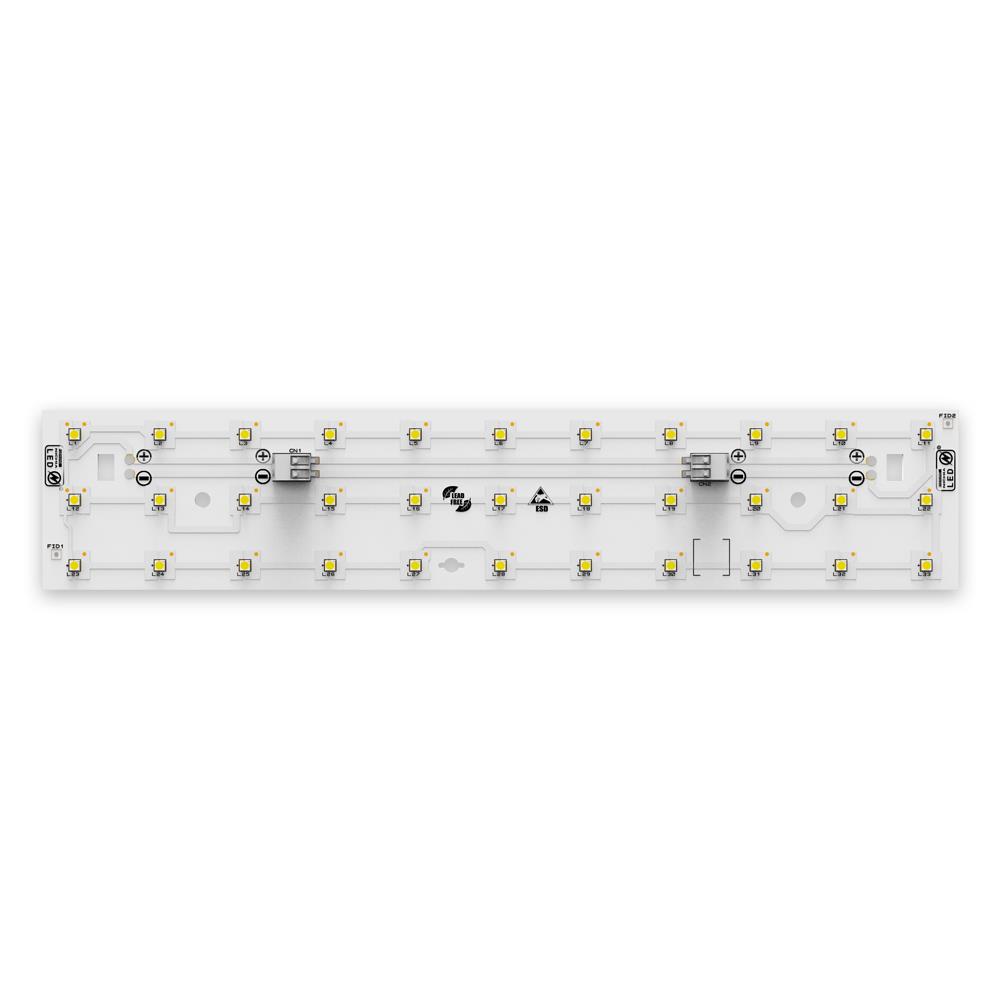

X-ML55280LMxx-3030HE+-33
Linear LED Modules
  • Default driving method is constant current input
  • CCT Range from 2000K up to 6500K
  • Luminous flux range from 909lm to 3.898lm
  • Efficacy of the module up to 209 lm/W
  • CRI 80 is standart, CRI 70 and CRI 90 are available
  • Outstanding system color tolerance MacAdam 3 over the full operating area
  • Simple installation (e.g. screw)
  • Long life-time > 60,000 hours
  • 5 years guarantee at specified conditions
Teklif Al
Dökümanlar
  • L130-4080HA3000001 İNDİR
    LED L130-4080HA3000001
    Correlated Color Temperature (CCT) 4000K
    Color Rendering Index (CRI) 80+
    Module Operating Voltage (V) 29 30 32
    Module Operating Current (mA) 150 350 700
    Branch Operating Current (mA) 50 117 233
    Module Power (W) 4,35 10,50 22,40
    Module Light Output (lm) 909 2.037 3.898
    Module Efficiency (lm/W) 209 194 174
  • PCB Bilgileri İNDİR
    Module Code X-ML55280LMxx-3030HE+-33
    PCB Material ALU Electrical Connection
    Operating Temperature(°C) -25 ~ +100°C Parallel 3
    Storage Temperaature(°C) -25 ~ +100°C Series 11
    Thermal Conductivity(W/m-k) 1,5 LED Quantity 33
  • X-ML55280LMxx-3030HE+-33 İNDİR
  • Uygulamalar İNDİR
