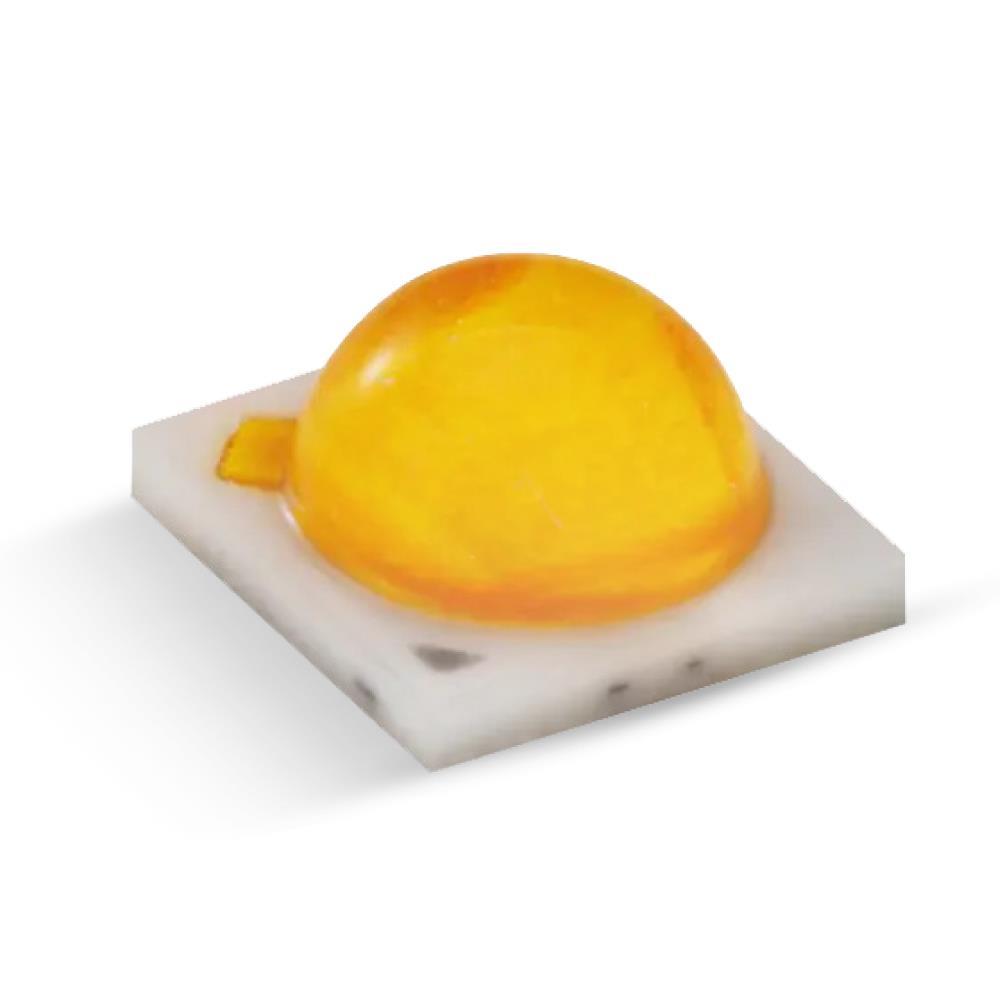

NCSA219B-V1
COLOR SERIES
  • Product Code: NCSA219B-V1 | NCSB219B-V1 | NCSC219B-V1 | NCSG219B-V1 | NCSE219B-V1 | NCSR219B-V1
  • Color: Amber | Blue | Royal Blue | Green | Bluish Green | Red
  • Wattage: 4,5W | 4,5W | 4,5W | 4,5W | 4,5W | 1,5W
  • Forward Voltage: 2,93V | 3,0V | 2,93V | 3,38V | 3,32V | 2,2V
  • Maximum Forward Current: 1500mA | 1500mA | 1500mA | 1200mA |1200mA | 700mA
  • Luminous Flux: 118lm | 40lm | - lm | 139lm | 108lm | 75lm
  • Condition: If: 350mA, Tj:25°C
Documents
  • NCSA219B-V1 DOWNLOAD
    Part No. NCSA219B-V1
    Size LxWxH (mm) 3.5×3.5×2
    Chromaticity Coordinate   Amber
    Typ.(x) 0.568
    Typ.(y) 0.422
    Luminous Intensity Typ. (cd) 35
    Luminous Flux Typ. (lm) 118
    VF Typ. (V) 2.93
    Max.(V) 3.3
    Directivity(2θ ½) (degree) 120
    IF (mA) 350
    Thermal resistance(RθJS) (℃/W) 11
    Absolute maximum ratings IF (mA) 1500
    IFP (mA) 2000
    IR (mA) 85
    PD (W) 4.95
    TJ (℃) 150
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 3500 per reel
    Soldering/Mounting Methods   Reflow
    NCSC219B-V1 DOWNLOAD
    Part No. NCSC219B-V1
    Size LxWxH (mm) 3.5×3.5×2
    Chromaticity Coordinate   Royal Blue
    Typ.(x) 0.161
    Typ.(y) 0.026
    Radiant Flux (mW) 680
    VF Typ. (V) 2.93
    Max.(V) 3.3
    Directivity(2θ ½) (degree) 125
    IF (mA) 350
    Thermal resistance(RθJS) (℃/W) 8
    Absolute maximum ratings IF (mA) 1500
    IFP (mA) 2000
    IR (mA) 85
    PD (W) 4.95
    TJ (℃) 150
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 3500 per reel
    Soldering/Mounting Methods   Reflow
    NCSE219B-V1 DOWNLOAD
    Part No. NCSE219B-V1
    Size LxWxH (mm) 3.5×3.5×2
    Chromaticity Coordinate   Bluish Green
    Typ.(x) 0.095
    Typ.(y) 0.565
    Luminous Intensity Typ. (cd) 28
    Luminous Flux Typ. (lm) 108
    VF Typ. (V) 3.32
    Max.(V) 3.7
    Directivity(2θ ½) (degree) 135
    IF (mA) 350
    Thermal resistance(RθJS) (℃/W) 25
    Absolute maximum ratings IF (mA) 1200
    IFP (mA) 1600
    IR (mA) 85
    PD (W) 4.44
    TJ (℃) 150
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 3500 per reel
    Soldering/Mounting Methods   Reflow
    NCSG219B-V1 DOWNLOAD
    Part No. NCSG219B-V1
    Size LxWxH (mm) 3.5×3.5×2
    Chromaticity Coordinate   Green
    Typ.(x) 0.168
    Typ.(y) 0.729
    Luminous Intensity Typ. (cd) 35
    Luminous Flux Typ. (lm) 139
    VF Typ. (V) 3.38
    Max.(V) 3.8
    Directivity(2θ ½) (degree) 145
    IF (mA) 350
    Thermal resistance(RθJS) (℃/W) 25
    Absolute maximum ratings IF (mA) 1200
    IFP (mA) 1600
    IR (mA) 85
    PD (W) 4.56
    TJ (℃) 150
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 3500 per reel
    Soldering/Mounting Methods   Reflow
    NCSR219B-V1 DOWNLOAD
    Part No. NCSR219B-V1
    Size LxWxH (mm) 3.5×3.5×2
    Chromaticity Coordinate   Red
    Typ.(x) 0.695
    Typ.(y) 0.305
    Luminous Intensity Typ. (cd) 19.4
    Luminous Flux Typ. (lm) 75
    VF Typ. (V) 2.2
    Max.(V) 2.6
    Directivity(2θ ½) (degree) 130
    IF (mA) 350
    Thermal resistance(RθJS) (℃/W) 11
    Absolute maximum ratings IF (mA) 700
    IFP (mA) 1000
    VR (V) 5
    PD (W) 1.82
    TJ (℃) 120
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 3500 per reel
    Soldering/Mounting Methods   Reflow
  • NCSA219BT-V1 Datasheet DOWNLOAD
    NCSB219BT-V1 Datasheet DOWNLOAD
    NCSC219BT-V1 Datasheet DOWNLOAD
    NCSE219BT-V1 Datasheet DOWNLOAD
    NCSG219BT-V1 Datasheet DOWNLOAD
    NCSR219BT-V1 Datasheet DOWNLOAD
  • IEC62471 NCSA219B-V1 DOWNLOAD
    IEC62471 NCSB219B-V1 DOWNLOAD
    IEC62471 NCSC219B-V1 DOWNLOAD
    IEC62741 NCSE219B-V1 DOWNLOAD
    IEC62471 NCSG219B-V1 DOWNLOAD
    IEC62471 NCSR219B-V1 DOWNLOAD
  • UL8750 Qualified LEDs DOWNLOAD
