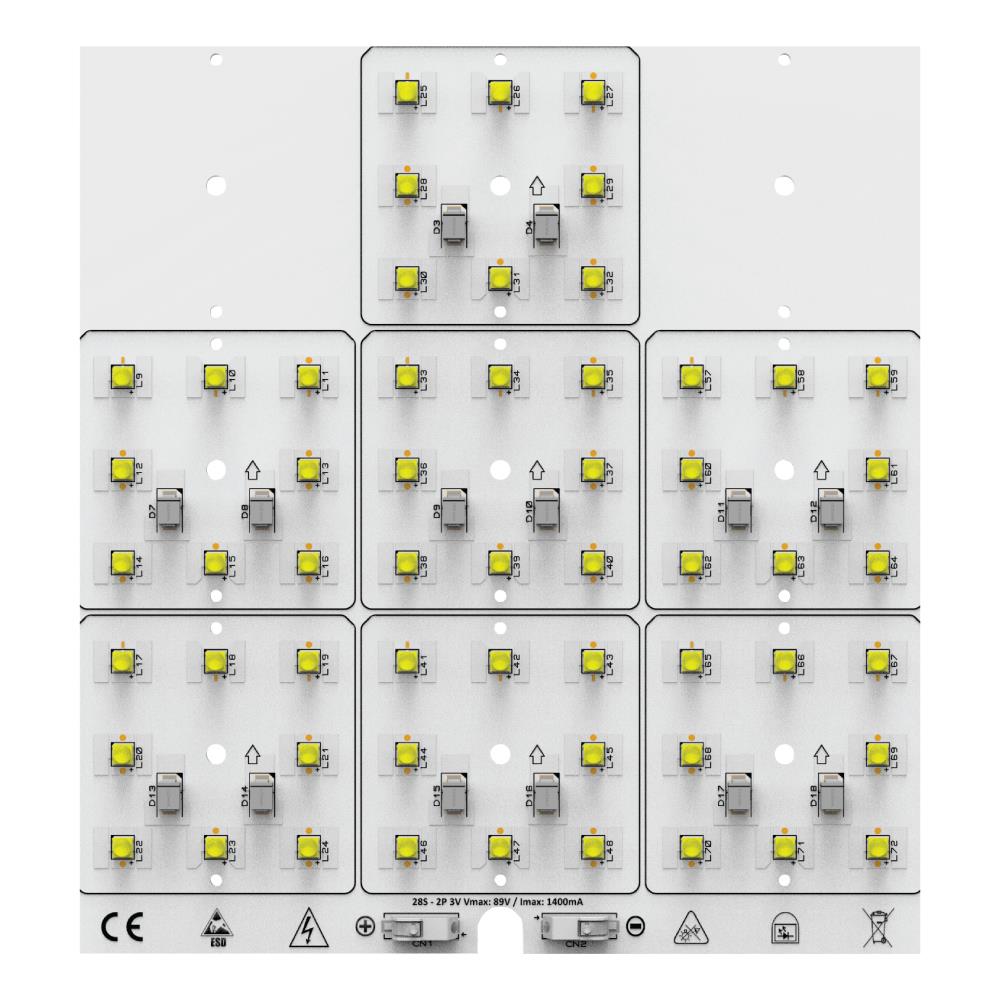

X-MS150162NCxx-NVSW219F-56
Square LED Modules
  • Default driving method is constant current input
  • CCT Range from 2700K up to 6500K
  • This module can be used as 28 series 2 parallels.
  • Luminous flux range from 11.484lm to 17.602lm
  • Efficacy of the module up to 166 lm/W
  • CRI 70 is standard.CRI 80 and CRI 90 is available.
  • Outstanding system color tolerance MacAdam 3 over the full operating area
  • Simple installation (e.g. screw)
  • Long life-time > 60,000 hours
  • 5 years guarantee at specified conditions
Get Offer
Documents
  • NVSW219F-V1_R8000 DOWNLOAD
    LED NVSW219F-V1_R8000
    Correlated Color Temperature (CCT) 4000K
    Color Rendering Index (CRI) 80+
    Module Operating Voltage (V) 78 79 80
    Module Operating Current (mA) 1000 1200 1400
    Branch Operating Current (mA) 500 600 700
    Module Power (W) 78,12 95,09 112,11
    Module Light Output (lm) 11.484 13.598 15.696
    Module Efficiency (lm/W) 147 143 140
    NVSW219F_R70 DOWNLOAD
    LED NVSW219F_R70
    Correlated Color Temperature (CCT) 4000K
    Color Rendering Index (CRI) 70+
    Module Operating Voltage (V) 78 79 80
    Module Operating Current (mA) 1000 1200 1400
    Branch Operating Current (mA) 500 600 700
    Module Power (W) 78,12 95,09 112,11
    Module Light Output (lm) 12.968 15.309 17.602
    Module Efficiency (lm/W) 166 161 157
  • PCB Bilgileri DOWNLOAD
    Module Code X-M162150NC-40xx-NVSW219F-56
    PCB Material ALU Electrical Connection
    Operating Temperature(°C) -40 ~ +100 Parallel 2
    Storage Temperaature(°C) -40 ~ +55 Series 28
    Thermal Conductivity(W/m-k) 1> LED Quantity 56
  • X-MS150162NCxx-NVSW219F-56 Datasheet DOWNLOAD
  • Application DOWNLOAD
