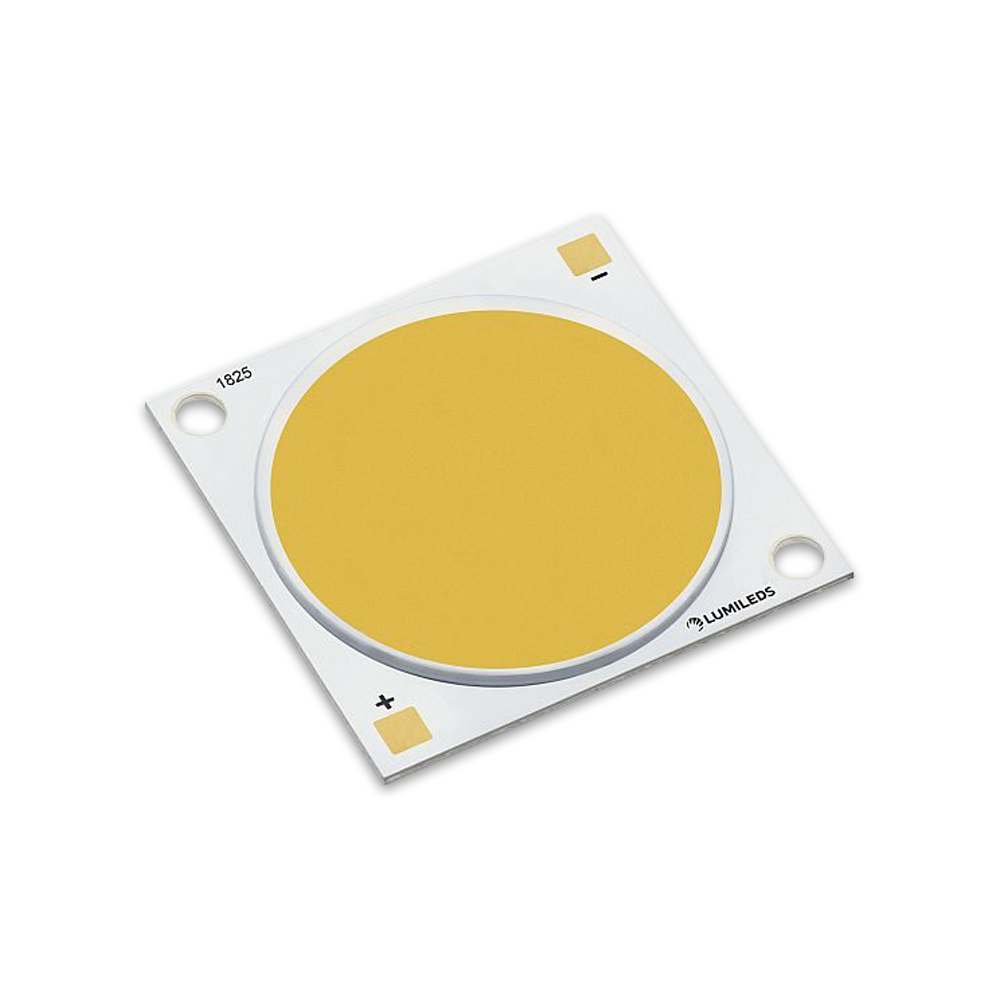

CORE RANGE
COB
  • Highest flux densities with industry’s smallest LES
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color
  • consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller
  • heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem
  • Applications; Spotlights,Track Lights,Downlights,High Bay,Low Bay,Floodlights.
Teklif Al
Dökümanlar
  • LUXEON CoB Core Range İNDİR
    Product Nominal
    CCT    		 Minimum
    CRI    		 Luminous Flux (lm) Typical
    Luminous
    Efficacy
    (lm/W)    		 Test
    Current
    (mA)    		 LES
    (mm)    		 Part Number
    Minimum Typical
    LUXEON CoB 1202s 2200K 80 675 750 109 200 6 L2C5-22801202E0600
    2700K 80 797 886 128 200 6 L2C5-27801202E0600
    3000K 80 837 930 135 200 6 L2C5-30801202E0600
    3500K 80 854 949 138 200 6 L2C5-35801202E0600
    4000K 80 863 959 139 200 6 L2C5-40801202E0600
    5000K 80 863 959 139 200 6 L2C5-50801202E0600
    2200K 90 589 654 95 200 6 L2C5-22901202E0600
    2700K 90 662 736 107 200 6 L2C5-27901202E0600
    3000K 90 689 766 111 200 6 L2C5-30901202E0600
    3500K 90 725 805 117 200 6 L2C5-35901202E0600
    4000K 90 742 824 119 200 6 L2C5-40901202E0600
    LUXEON CoB 1202 3000K 70 923 1026 149 200 9 L2C5-30701202E0900
    3500K 70 923 1026 149 200 9 L2C5-35701202E0900
    4000K 70 968 1075 156 200 9 L2C5-40701202E0900
    5000K 70 968 1075 156 200 9 L2C5-50701202E0900
    5700K 70 942 1047 152 200 9 L2C5-57701202E0900
    2200K 80 703 781 113 200 9 L2C5-22801202E0900
    2700K 80 830 922 134 200 9 L2C5-27801202E0900
    3000K 80 876 973 141 200 9 L2C5-30801202E0900
    3500K 80 893 992 144 200 9 L2C5-35801202E0900
    4000K 80 899 999 145 200 9 L2C5-40801202E0900
    5000K 80 899 999 145 200 9 L2C5-50801202E0900
    2200K 90 625 694 101 200 9 L2C5-22901202E0900
    2700K 90 689 766 111 200 9 L2C5-27901202E0900
    3000K 90 729 810 117 200 9 L2C5-30901202E0900
    3500K 90 752 836 121 200 9 L2C5-35901202E0900
    4000K 90 772 858 124 200 9 L2C5-40901202E0900
    LUXEON CoB 1203 3000K 70 1475 1639 160 300 9 L2C5-30701203F0900
    70 1379 1532 148 300 9 L2C5-30701203E0900
    3500K 70 1379 1532 148 300 9 L2C5-35701203E0900
    4000K 70 1569 1743 168 300 9 L2C5-40701203F0900
    70 1466 1629 157 300 9 L2C5-40701203E0900
    5000K 70 1466 1629 157 300 9 L2C5-50701203E0900
    5700K 70 1428 1587 153 300 9 L2C5-57701203E0900
    6500K 70 1391 1546 149 300 9 L2C5-65701203E0900
    2200K 80 1066 1184 114 300 9 L2C5-22801203E0900
    2700K 80 1359 1510 147 300 9 L2C5-27801203F0900
    80 1258 1398 135 300 9 L2C5-27801203E0900
    3000K 80 1392 1547 151 300 9 L2C5-30801203F0900
    80 1289 1432 138 300 9 L2C5-30801203E0900
    3500K 80 1420 1578 154 300 9 L2C5-35801203F0900
    80 1315 1461 141 300 9 L2C5-35801203E0900
    4000K 80 1472 1635 159 300 9 L2C5-40801203F0900
    80 1363 1514 146 300 9 L2C5-40801203E0900
    5000K 80 1472 1635 159 300 9 L2C5-50801203F0900
    80 1363 1514 146 300 9 L2C5-50801203E0900
    5700K 80 1359 1510 146 300 9 L2C5-57801203E0900
    2200K 90 929 1032 100 300 9 L2C5-22901203E0900
    2700K 90 1170 1300 127 300 9 L2C5-27901203F0900
    90 1045 1161 112 300 9 L2C5-27901203E0900
    3000K 90 1210 1344 131 300 9 L2C5-30901203F0900
    90 1080 1200 116 300 9 L2C5-30901203E0900
    3500K 90 1258 1398 136 300 9 L2C5-35901203F0900
    90 1140 1267 122 300 9 L2C5-35901203E0900
    4000K 90 1251 1390 135 300 9 L2C5-40901203F0900
    90 1171 1301 126 300 9 L2C5-40901203E0900
    2700K 95 999 1110 108 300 9 L2C5-27951203F0900
    3000K 95 1053 1170 114 300 9 L2C5-30951203F0900
      4000K 95 1149 1327 129 300 9 L2C5-40951203F0900
    LUXEON CoB 1204 3000K 70 2124 2360 151 450 13 L2C5-30701204E1300
    3500K 70 2124 2360 151 450 13 L2C5-35701204E1300
    4000K 70 2258 2509 161 450 13 L2C5-40701204E1300
    5000K 70 2258 2509 161 450 13 L2C5-50701204E1300
    5700K 70 2199 2443 156 450 13 L2C5-57701204E1300
    6500K 70 2142 2380 152 450 13 L2C5-65701204E1300
    2200K 80 1641 1823 117 450 13 L2C5-22801204E1300
    2700K 80 2092 2324 149 450 13 L2C5-27801204F1300
    80 1937 2152 138 450 13 L2C5-27801204E1300
    3000K 80 2138 2376 152 450 13 L2C5-30801204F1300
    80 1980 2200 141 450 13 L2C5-30801204E1300
    3500K 80 2020 2244 144 450 13 L2C5-35801204E1300
    4000K 80 2260 2511 161 450 13 L2C5-40801204E1300
    4000K 80 2099 2332 149 450 13 L2C5-40801204F1300
    5000K 80 2099 2332 149 450 13 L2C5-50801204E1300
    5700K 80 2093 2325 149 450 13 L2C5-57801204E1300
    2200K 90 1430 1589 102 450 13 L2C5-22901204E1300
    2700K 90 1802 2003 129 450 13 L2C5-27901204F1300
    90 1609 1788 115 450 13 L2C5-27901204E1300
    3000K 90 1855 2061 132 450 13 L2C5-30901204F1300
    90 1656 1840 118 450 13 L2C5-30901204E1300
    3500K 90 1755 1950 125 450 13 L2C5-35901204E1300
    4000K 90 1803 2003 128 450 13 L2C5-40901204E1300
    LUXEON CoB 1205 3000K 70 2958 3287 158 600 13 L2C5-30701205F1300
    70 2765 3072 146 600 13 L2C5-30701205E1300
    3500K 70 2765 3072 146 600 13 L2C5-35701205E1300
    4000K 70 3137 3486 167 600 13 L2C5-40701205F1300
    70 2932 3258 155 600 13 L2C5-40701205E1300
    5000K 70 2932 3258 155 600 13 L2C5-50701205E1300
    5700K 70 2856 3173 151 600 13 L2C5-57701205E1300
    6500K 70 2782 3091 147 600 13 L2C5-65701205E1300
    2200K 80 2131 2368 113 600 13 L2C5-22801205E1300
    2700K 80 2717 3019 145 600 13 L2C5-27801205F1300
    80 2516 2795 133 600 13 L2C5-27801205E1300
    3000K 80 2824 3137 151 600 13 L2C5-30801205F1300
    80 2615 2905 138 600 13 L2C5-30801205E1300
    3500K 80 2880 3200 154 600 13 L2C5-35801205F1300
    80 2667 2963 141 600 13 L2C5-35801205E1300
    4000K 80 2943 3270 157 600 13 L2C5-40801205F1300
    80 2725 3028 144 600 13 L2C5-40801205E1300
    5000K 80 2943 3270 157 600 13 L2C5-50801205F1300
    80 2725 3028 144 600 13 L2C5-50801205E1300
    5700K 80 2935 3261 157 600 13 L2C5-57801205F1300
    80 2717 3019 144 600 13 L2C5-57801205E1300
    2200K 90 1857 2063 98 600 13 L2C5-22901205E1300
    2700K 90 2341 2601 124 600 13 L2C5-27901205F1300
    90 2090 2322 111 600 13 L2C5-27901205E1300
    3000K 90 2437 2708 129 600 13 L2C5-30901205F1300
    90 2176 2418 115 600 13 L2C5-30901205E1300
    3500K 90 2280 2533 121 600 13 L2C5-35901205E1300
    4000K 90 2622 2913 139 600 13 L2C5-40901205F1300
    90 2341 2601 124 600 13 L2C5-40901205E1300
    5000K 90 2623 2914 144 600 13 L2C5-50901205F1300
    2700K 95 2007 2230 106 600 13 L2C5-27951205F1300
    3000K 95 2160 2400 114 600 13 L2C5-30951205F1300
    LUXEON CoB 1208 3000K 70 4439 4933 157 900 15 L2C5-30701208F1500
    70 4149 4610 147 900 15 L2C5-30701208E1500
    3500K 70 4149 4610 147 900 15 L2C5-35701208E1500
    4000K 70 4651 5243 167 900 15 L2C5-40701208F1500
    70 4347 4900 156 900 15 L2C5-40701208E1500
    5000K 70 4651 5243 167 900 15 L2C5-50701208F1500
    70 4347 4900 156 900 15 L2C5-50701208E1500
    5700K 70 4584 5093 163 900 15 L2C5-57701208F1500
    70 4284 4760 152 900 15 L2C5-57701208E1500
    6500K 70 4465 4962 158 900 15 L2C5-65701208F1500
    70 4173 4637 148 900 15 L2C5-65701208E1500
    2200K 80 3197 3552 114 900 15 L2C5-22801208E1500
    2700K 80 4076 4528 145 900 15 L2C5-27801208F1500
    80 3774 4193 134 900 15 L2C5-27801208E1500
    3000K 80 4245 4717 151 900 15 L2C5-30801208F1500
    80 3931 4368 140 900 15 L2C5-30801208E1500
    3500K 80 4331 4811 154 900 15 L2C5-35801208F1500
    80 4010 4455 143 900 15 L2C5-35801208E1500
    4000K 80 4415 4905 157 900 15 L2C5-40801208F1500
    80 4088 4542 145 900 15 L2C5-40801208E1500
    5000K 80 4415 4905 157 900 15 L2C5-50801208F1500
    80 4088 4542 145 900 15 L2C5-50801208E1500
    5700K 80 4402 4891 157 900 15 L2C5-57801208F1500
    80 4076 4529 145 900 15 L2C5-57801208E1500
    2200K 90 2785 3095 99 900 15 L2C5-22901208E1500
    2700K 90 3511 3901 125 900 15 L2C5-27901208F1500
    90 3137 3486 112 900 15 L2C5-27901208E1500
    3000K 90 3639 4043 130 900 15 L2C5-30901208F1500
    90 3249 3610 116 900 15 L2C5-30901208E1500
    3500K 90 3420 3800 122 900 15 L2C5-35901208E1500
    4000K 90 3932 4370 140 900 15 L2C5-40901208F1500
    90 3511 3902 125 900 15 L2C5-40901208E1500
    2700K 95 3015 3350 107 900 15 L2C5-27951208F1500
    3000K 95 3240 3600 115 900 15 L2C5-30951208F1500
    LUXEON CoB 1211 3000K 70 6133 6739 161 1200 19 L2C5-30701211F1900
    70 5695 6328 152 1200 19 L2C5-30701211E1900
    3500K 70 5695 6328 152 1200 19 L2C5-35701211E1900
    4000K 70 6519 7163 172 1200 19 L2C5-40701211F1900
    70 6053 6726 162 1200 19 L2C5-40701211E1900
    5000K 70 6519 7163 172 1200 19 L2C5-50701211F1900
    70 6053 6726 162 1200 19 L2C5-50701211E1900
    5700K 70 6334 6961 167 1200 19 L2C5-57701211F1900
    70 5882 6536 157 1200 19 L2C5-57701211E1900
    6500K 70 6172 6782 162 1200 19 L2C5-65701211F1900
    70 5731 6368 152 1200 19 L2C5-65701211E1900
    2200K 80 4390 4878 117 1200 19 L2C5-22801211E1900
    2700K 80 5580 6132 147 1200 19 L2C5-27801211F1900
    80 5183 5758 138 1200 19 L2C5-27801211E1900
    3000K 80 5737 6305 151 1200 19 L2C5-30801211F1900
    80 5328 5920 142 1200 19 L2C5-30801211E1900
    3500K 80 5852 6430 154 1200 19 L2C5-35801211F1900
    80 5435 6038 145 1200 19 L2C5-35801211E1900
    4000K 80 6046 6643 159 1200 19 L2C5-40801211F1900
    80 5614 6238 150 1200 19 L2C5-40801211E1900
    5000K 80 6046 6643 159 1200 19 L2C5-50801211F1900
    80 5614 6238 150 1200 19 L2C5-50801211E1900
    5700K 80 6028 6624 159 1200 19 L2C5-57801211F1900
    80 5598 6220 149 1200 19 L2C5-57801211E1900
    2200K 90 3749 4165 100 1200 19 L2C5-22901211E1900
    2700K 90 4744 5213 125 1200 19 L2C5-27901211F1900
    90 4305 4783 115 1200 19 L2C5-27901211E1900
    3000K 90 4964 5455 131 1200 19 L2C5-30901211F1900
    90 4505 5005 120 1200 19 L2C5-30901211E1900
    3500K 90 5176 5688 136 1200 19 L2C5-35901211F1900
    90 4696 5218 125 1200 19 L2C5-35901211E1900
    4000K 90 5315 5840 141 1200 19 L2C5-40901211F1900
    90 4822 5358 129 1200 19 L2C5-40901211E1900
    2700K 95 4032 4480 107 1200 19 L2C5-27951211F1900
    3000K 95 4221 4690 112 1200 19 L2C5-30951211F1900
    LUXEON CoB 1216 3000K 70 7987 8875 161 1600 23 L2C5-30701216F2300
    70 7465 8294 150 1600 23 L2C5-30701216E2300
    3500K 70 7465 8294 150 1600 23 L2C5-35701216E2300
    4000K 70 8427 9364 170 1600 23 L2C5-40701216F2300
    70 7876 8751 159 1600 23 L2C5-40701216E2300
    5000K 70 8427 9364 170 1600 23 L2C5-50701216F2300
    70 7876 8751 159 1600 23 L2C5-50701216E2300
    5700K 70 8250 9167 166 1600 23 L2C5-57701216F2300
    70 7710 8567 155 1600 23 L2C5-57701216E2300
    6500K 70 8038 8931 162 1600 23 L2C5-65701216F2300
    70 7512 8347 151 1600 23 L2C5-65701216E2300
    2200K 80 5755 6394 116 1600 23 L2C5-22801216E2300
    2700K 80 7334 8150 148 1600 23 L2C5-27801216F2300
    80 6791 7546 137 1600 23 L2C5-27801216E2300
    3000K 80 7508 8342 151 1600 23 L2C5-30801216F2300
    80 6952 7724 140 1600 23 L2C5-30801216E2300
    3500K 80 7657 8508 154 1600 23 L2C5-35801216F2300
    80 7090 7878 143 1600 23 L2C5-35801216E2300
    4000K 80 7947 8830 160 1600 23 L2C5-40801216F2300
    80 7358 8176 148 1600 23 L2C5-40801216E2300
    5000K 80 7947 8830 160 1600 23 L2C5-50801216F2300
    80 7358 8176 148 1600 23 L2C5-50801216E2300
    5700K 80 7923 8803 160 1600 23 L2C5-57801216F2300
    80 7336 8151 148 1600 23 L2C5-57801216E2300
    2200K 90 5013 5570 101 1600 23 L2C5-22901216E2300
    2700K 90 6319 7021 127 1600 23 L2C5-27901216F2300
    90 5642 6269 114 1600 23 L2C5-27901216E2300
    3000K 90 6570 7300 132 1600 23 L2C5-30901216F2300
    90 5866 6518 118 1600 23 L2C5-30901216E2300
    3500K 90 6155 6839 124 1600 23 L2C5-35901216E2300
    4000K 90 6321 7023 127 1600 23 L2C5-40901216E2300
    LUXEON CoB 1812 4000K 70 9356 10395 168 1200 23 L2C5-40701812F2300
    70 9000 10000 161 1200 23 L2C5-40701812G2300
    5000K 70 9450 10500 169 1200 23 L2C5-50701812F2300
    70 9000 10000 161 1200 23 L2C5-50701812G2300
    3000K 80 8221 9134 147 1200 23 L2C5-30801812F2300
    80 7682 8536 138 1200 23 L2C5-30801812G2300
    4000K 80 8691 9657 156 1200 23 L2C5-40801812F2300
    80 8122 9025 145 1200 23 L2C5-40801812G2300
    5000K 80 8814 9793 158 1200 23 L2C5-50801812F2300
    80 8122 9025 145 1200 23 L2C5-50801812G2300
    LUXEON CoB 1321 2200K 60 10961 12179 155 2100 29 L2C5-22601321F2900
    3000K  70 10736 11929 151 2100 29 L2C5-30701321E2900
    4000K 70 11866 13185 167 2100 29 L2C5-40701321F2900
    70 11416 12684 161 2100 29 L2C5-40701321E2900
    5000K 70 11986 13318 169 2100 29 L2C5-50701321F2900
    70 11416 12684 161 2100 29 L2C5-50701321E2900
    5700K 70 11121 12357 157 2100 29 L2C5-57701321E2900
    6500K 70 10834 12038 153 2100 29 L2C5-65701321E2900
    2700K 80 9797 10885 138 2100 29 L2C5-27801321E2900
    3000K 80 10737 11930 151 2100 29 L2C5-30801321F2900
    80 10035 11150 142 2100 29 L2C5-30801321E2900
    3500K 80 10238 11376 144 2100 29 L2C5-35801321E2900
    4000K 80 11352 12613 160 2100 29 L2C5-40801321F2900
    80 10610 11788 150 2100 29 L2C5-40801321E2900
    5000K 80 10610 11788 150 2100 29 L2C5-50801321E2900
    2700K 90 8136 9040 115 2100 29 L2C5-27901321E2900
    3000K 90 8409 9344 119 2100 29 L2C5-30901321E2900
    5600K 90 9117 10130 129 2100 29 L2C5-56901321E2900
    LUXEON CoB 1825 2200K 60 15120 16800 144 2250 32 L2C5-22601825G3200
    3000K 70 15550 17278 151 2250 32 L2C5-30701825G3200
    4000K 70 17362 19291 166 2250 32 L2C5-40701825F3200
    70 16535 18372 161 2250 32 L2C5-40701825G3200
    5000K 70 16535 18372 161 2250 32 L2C5-50701825G3200
    5700K 70 16108 17898 157 2250 32 L2C5-57701825G3200
    6500K 70 15692 17436 153 2250 32 L2C5-65701825G3200
    2700K 80 14190 15767 138 2250 32 L2C5-27801825G3200
    3000K 80 15553 17281 149 2250 32 L2C5-30801825F3200
    80 14535 16150 138 2250 32 L2C5-30801825G3200
    3500K 80 14829 16477 144 2250 32 L2C5-35801825G3200
    4000K 80 16443 18270 157 2250 32 L2C5-40801825F3200
    80 15367 17075 150 2250 32 L2C5-40801825G3200
    5000K 80 15367 17075 150 2250 32 L2C5-50801825G3200
    2700K 90 11784 13094 115 2250 32 L2C5-27901825G3200
    3000K 90 12180 13534 119 2250 32 L2C5-30901825G3200
    5600K 90 13205 14673 129 2250 32 L2C5-56901825G3200
  • DS162 luxeon cob core range İNDİR
  • 6051921.50P İNDİR
